前言

最近上映的复仇者联盟4据说没有片尾彩蛋，不过谷歌帮我们做了。只要在谷歌搜索灭霸，在结果的右侧点击无限手套，你将化身为灭霸，其中一半的搜索结果会化为灰烬消失...那么这么酷的动画在iOS中可以实现吗？答案是肯定的。整个动画主要包含以下几部分：响指动画、沙化消失以及背景音效和复原动画，让我们分别来看看如何实现。

图1 左为沙化动画，右为复原动画

响指动画

Google的方法是利用了48帧合成的一张Sprite图进行动画的：

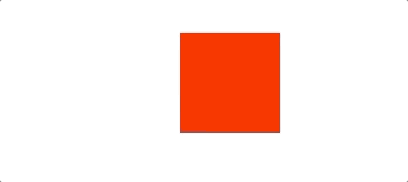

图3 左边为离散模式，右边为默认的线性模式

沙化消失

这个效果是整个动画较难的部分，Google的实现很巧妙，它将需要沙化消失内容的html通过html2canvas渲染成canvas，然后将其转换为图片后的每一个像素点随机地分配到32块canvas中，最后对每块画布进行随机地移动和旋转即达到了沙化消失的效果。

像素处理

新建自定义视图 DustEffectView，这个视图的作用是用来接收图片并将其进行沙化消失。首先创建函数createDustImages，它将一张图片的像素随机分配到32张等待动画的图片上：

class DustEffectView: UIView {
 private func createDustImages(image: UIImage) -> [UIImage] {
 var result = [UIImage]()
 guard let inputCGImage = image.cgImage else {
  return result
 }
 //1
 let colorSpace = CGColorSpaceCreateDeviceRGB()
 let width = inputCGImage.width
 let height = inputCGImage.height
 let bytesPerPixel = 4
 let bitsPerComponent = 8
 let bytesPerRow = bytesPerPixel * width
 let bitmapInfo = CGImageAlphaInfo.premultipliedLast.rawValue | CGBitmapInfo.byteOrder32Little.rawValue

 guard let context = CGContext(data: nil, width: width, height: height, bitsPerComponent: bitsPerComponent, bytesPerRow: bytesPerRow, space: colorSpace, bitmapInfo: bitmapInfo) else {
  return result
 }
 context.draw(inputCGImage, in: CGRect(x: 0, y: 0, width: width, height: height))
 guard let buffer = context.data else {
  return result
 }
 let pixelBuffer = buffer.bindMemory(to: UInt32.self, capacity: width * height)
 //2
 let imagesCount = 32
 var framePixels = Array(repeating: Array(repeating: UInt32(0), count: width * height), count: imagesCount)
 for column in 0..<width {
  for row in 0..<height {
  let offset = row * width + column
  //3
  for _ in 0...1 {
   let factor = Double.random(in: 0..<1) + 2 * (Double(column)/Double(width))
   let index = Int(floor(Double(imagesCount) * ( factor / 3)))
   framePixels[index][offset] = pixelBuffer[offset]
  }
  }
 }
 //4
 for frame in framePixels {
  let data = UnsafeMutablePointer(mutating: frame)
  guard let context = CGContext(data: data, width: width, height: height, bitsPerComponent: bitsPerComponent, bytesPerRow: bytesPerRow, space: colorSpace, bitmapInfo: bitmapInfo) else {
  continue
  }
  result.append(UIImage(cgImage: context.makeImage()!, scale: image.scale, orientation: image.imageOrientation))
 }
 return result
 }
}

//1: 根据指定格式创建位图上下文，然后将输入的图片绘制上去之后获取其像素数据

//2: 创建像素二维数组，遍历输入图片每个像素，将其随机分配到数组32个元素之一的相同位置。随机方法有点特别，原始图片左边的像素只会分配到前几张图片，而原始图片右边的像素只会分配到后几张。

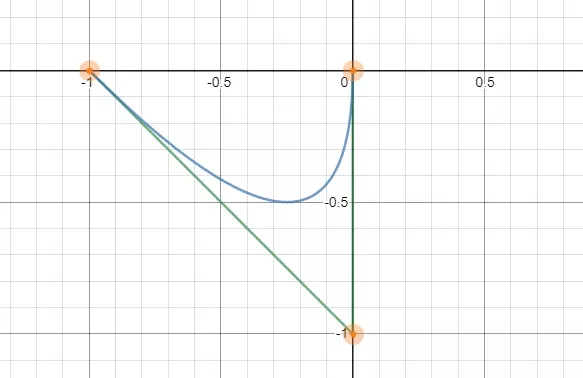

图6 将“预想”的终点作为控制点的贝塞尔曲线，看起来和CSS中的运动轨迹差不多

扩展问题

通过文章中描述的方式生成的贝塞尔曲线是否与CSS中的动画轨迹完全一致呢？

现在可以给视图添加动画了：

 let layer = CALayer()
 layer.frame = bounds
 layer.contents = image.cgImage
 self.layer.addSublayer(layer)
 let centerX = Double(layer.position.x)
 let centerY = Double(layer.position.y)
 let radian1 = Double.pi / 12 * Double.random(in: -0.5..<0.5)
 let radian2 = Double.pi / 12 * Double.random(in: -0.5..<0.5)
 let random = Double.pi * 2 * Double.random(in: -0.5..<0.5)
 let transX = 60 * cos(random)
 let transY = 30 * sin(random)
 //1:
 // x' = x*cos(rad) - y*sin(rad)
 // y' = y*cos(rad) + x*sin(rad)
 let realTransX = transX * cos(radian1) - transY * sin(radian1)
 let realTransY = transY * cos(radian1) + transX * sin(radian1)
 let realEndPoint = CGPoint(x: centerX + realTransX, y: centerY + realTransY)
 let controlPoint = CGPoint(x: centerX + transX, y: centerY + transY)
 //2:
 let movePath = UIBezierPath()
 movePath.move(to: layer.position)
 movePath.addQuadCurve(to: realEndPoint, controlPoint: controlPoint)
 let moveAnimation = CAKeyframeAnimation(keyPath: "position")
 moveAnimation.path = movePath.cgPath
 moveAnimation.calculationMode = .paced
 //3:
 let rotateAnimation = CABasicAnimation(keyPath: "transform.rotation")
 rotateAnimation.toValue = radian1 + radian2
 let fadeOutAnimation = CABasicAnimation(keyPath: "opacity")
 fadeOutAnimation.toValue = 0.0
 let animationGroup = CAAnimationGroup()
 animationGroup.animations = [moveAnimation, rotateAnimation, fadeOutAnimation]
 animationGroup.duration = 1
 //4:
 animationGroup.beginTime = CACurrentMediaTime() + 1.35 * Double(i) / Double(imagesCount)
 animationGroup.isRemovedOnCompletion = false
 animationGroup.fillMode = .forwards
 layer.add(animationGroup, forKey: nil)

//1: 实际的偏移量旋转了radian1弧度，这个可以通过公式x' = x*cos(rad) - y*sin(rad), y' = y*cos(rad) + x*sin(rad)算出

//2: 创建UIBezierPath并关联到CAKeyframeAnimation中

//3: 两个弧度叠加作为最终的旋转弧度

//4: 设置CAAnimationGroup的开始时间，让每层Layer的动画延迟开始

结尾

到这里，谷歌灭霸彩蛋中较复杂的技术点均已实现。如果您感兴趣，完整的代码(包含音效和复原动画)可以通过文章开头的链接进行查看，可以尝试将沙化图片的数量从32提高至更多，效果会越好，内存也会消耗更多 :-D。
